TYT TC - 3000A 10W Ultra-High Output Power Transceiver (Black)

RM 349.00

Estimated Delivery 7 to 9 Days

Tracking number available in 3 days time.


TYT TC - 3000A 10W Ultra-high Output Power Transceiver UHF 400 - 520MHz VOX Message Scrambler 2-way

Main Features:

- 10W / 5W side-key power switch enables further communication distance

- 3600mAh polymer Li-ion battery allows it to run for 260 hours

- 16 channels with VHF 134 - 174MHz and UHF 400 - 520MHz

- VOX transmitting with adjustable sensitivity to meet different needs

- CTCSS / DCS non-standard code setting to prevent the radio from receiving unwanted signal on the same channel

- 1750Hz tone TX to connect with the repeater

- Scrambler function provides confidential communication

- Emergency alert with alarm call

- Battery saving

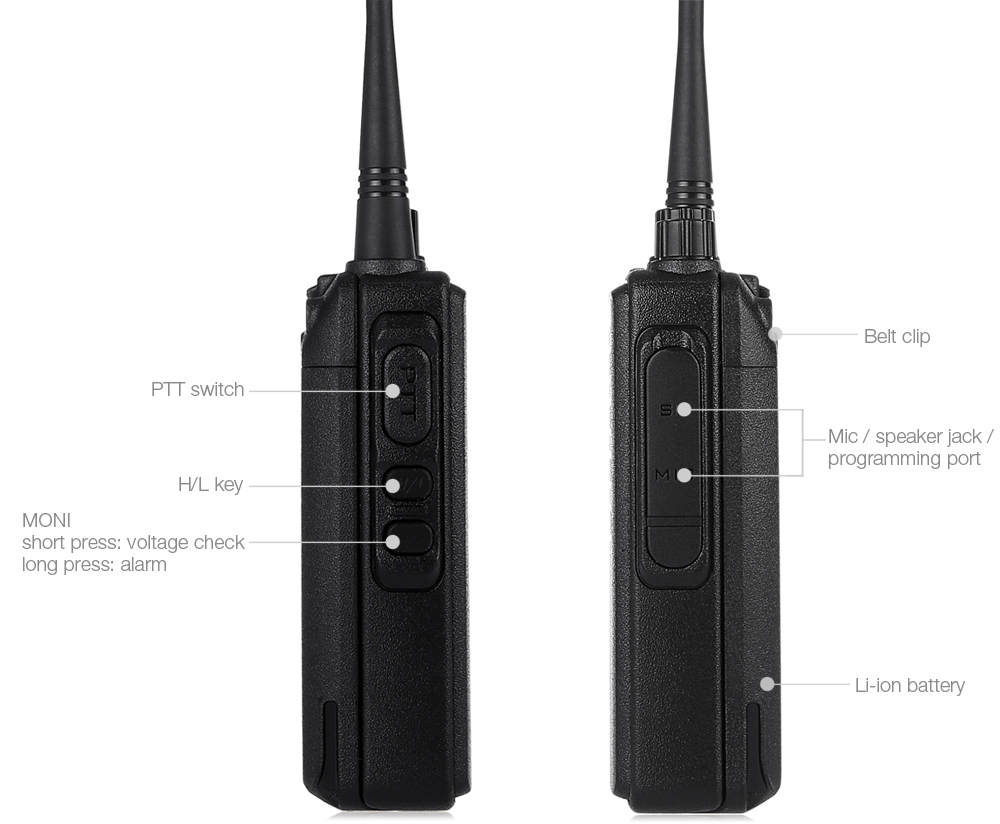

- Side-key assignment

- Scan mode

- COMP function to reduce noise and have smooth talking

- Wide / narrow bandwidth selective

- Busy channel lockout

- End-tone elimination

- English / Chinese voice prompt

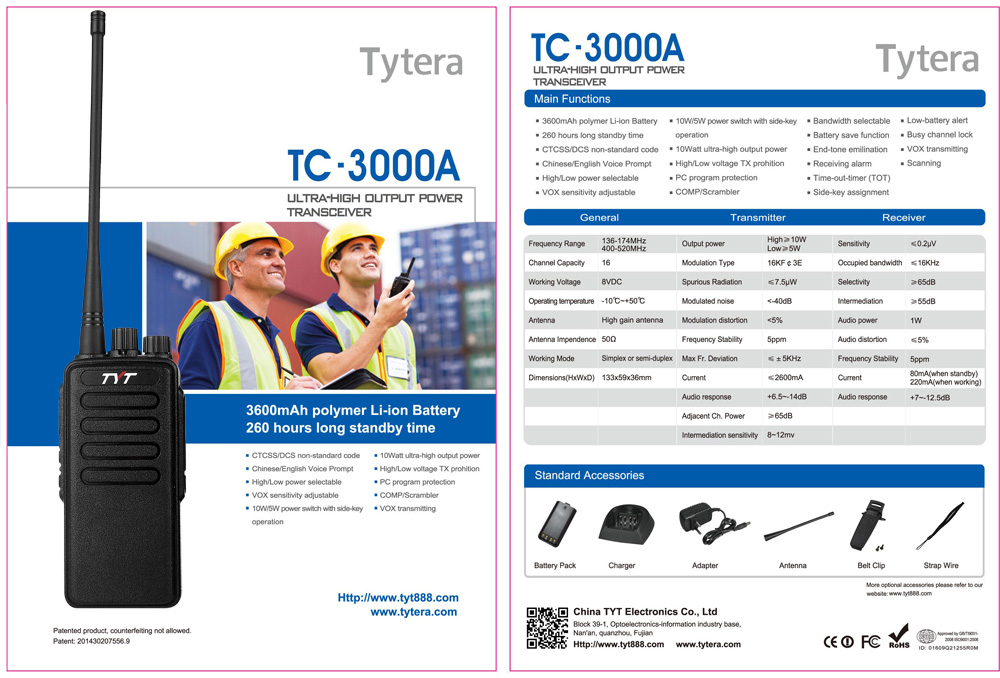

General Specifications:

Frequency range: VHF 134 - 174MHz / UHF 400 - 520MHz

Channel capacity: 16CH

Working voltage: DC 8V

Operating temperature: -10 - 50 Deg.C

Antenna: High gain antenna

Antenna impedance: 50ohms

Working mode: Simplex / semi-duplex

Transmitter:

Output power: 9W + / - 1W ( H ) and 5W + / - 0.5W ( L )

Modulation Type: 16KF 3E

Spurious radiation: 7.5uW and less

Modulation noise: Less than -40dB

Modulation distortion: less than 5pct

Frequency stability: 5ppm

Max Fr. deviation: + / - 5KHz and less

Current: 2600mA and less

Audio response ( 300 - 3000Hz ): From +6.5 to -14dB

Adjacent Ch. power: 65dB and more

Intermediation sensitivity:

Receiver:

Sensitivity: 0.2uV and less

Occupied bandwidth: 16KHz and less

Selectivity: 65dB and more

Intermediation: 55dB and more

Audio power: 1W

Audio distortion: 5pct and less

Frequency stability: 5ppm

Current: 80mA when standby and 220mA when working

Audio response: Between +7 and -12.5dB

Note: If you need programming software, please email us freely, we will provide software.

Package weight: 0.790 kg

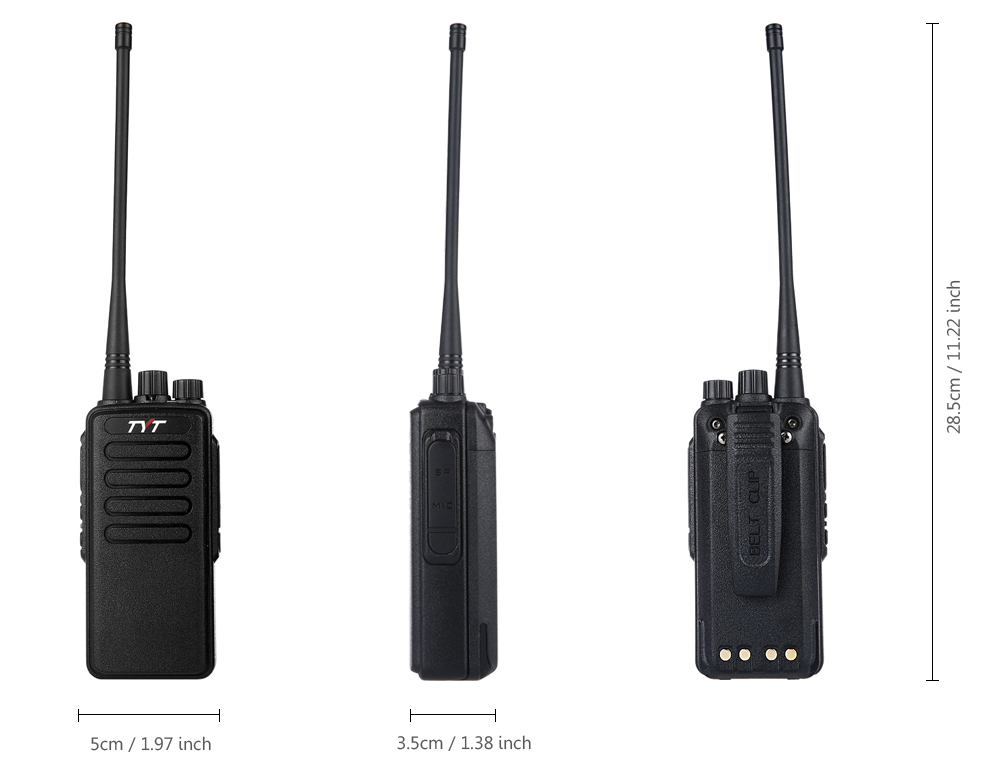

Product Size(L x W x H): 13.00 x 5.80 x 3.50 cm / 5.12 x 2.28 x 1.38 inches

Package Size(L x W x H): 23.00 x 17.00 x 6.50 cm / 9.06 x 6.69 x 2.56 inches

Package Contents: 1 x TYT TC - 3000A Ultra-high Output Power 2-way Radio, 1 x Polymer Li-ion Battery, 1 x Desk Charger, 1 x US Charger Adapter, 2 x Antenna, 1 x Belt Clip, 2 x Screw, 1 x English User Manual

Warranty : 3 Months
